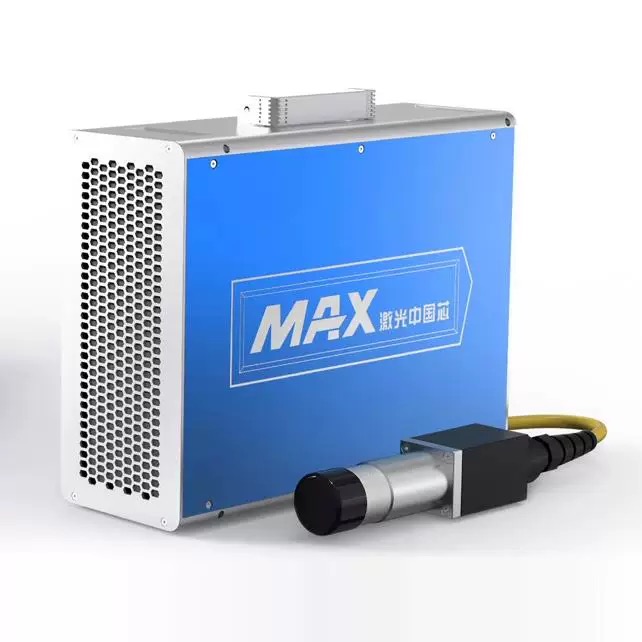

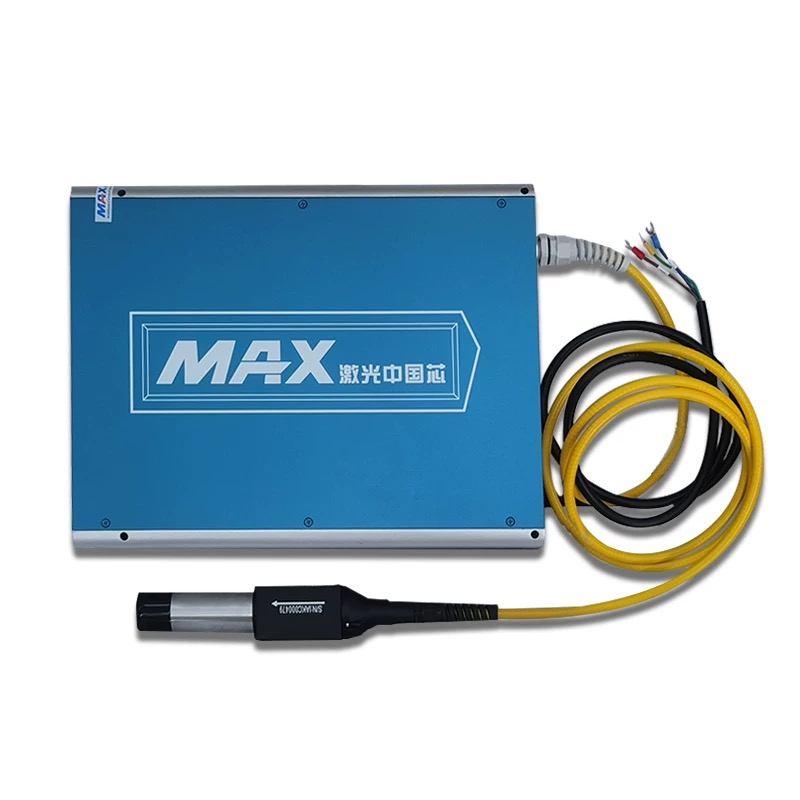

MAX 20W 30W 50W 60W Fiber Laser Source

Product model：MAX 20X/20L/20W/30X/30L/30W/50X/50W/60W

Product introductionMAX Q-switch series pulsed fiber laser is designed based on Q-switch oscillator aoffer a variety models from 20W to 60W . The laser is transmitted by fiber and isolator, and is controlled through a 25-pin interface. The Q-switched pulse fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc.

Technical support：

Application field：

Product parameter
Product name Model number Laser power Laser brand Input power Laser wavelength Laser source lifespan Laser repeat frequency Output power instability Output Beam Diameter(mm) M² Polarization state Pulse Width Range(ns) Max.Single Pulse Energy(mJ) Delivery Cable length (m) Power adjustment range (%) Working temperature (℃ ): Cooling method Suitable for engraving materials Raycus 20W 30W 50W 60W 70W Fiber laser source MAX 20X/20L/20W/30X/30L/30W/50X/50W/60W 20W, 30W,50W, 60W, 70W MAX 24V(dc） 1064nm Technical hours lifespan:100000hours ,actual lifespan is subject to the actual using 20-80KHZ ＜3% 7±1 ＜1.5 random 120-150 0.66 3m(cable length can be customzied according to your needs) 1-100% 0-40°C air cooling Metal, plastic , leather , stone
