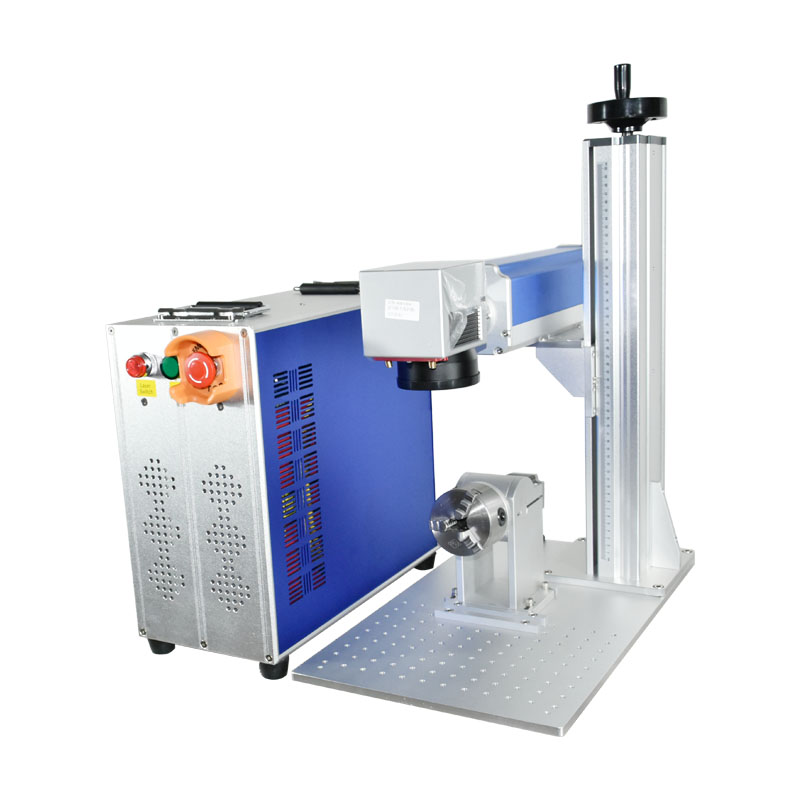

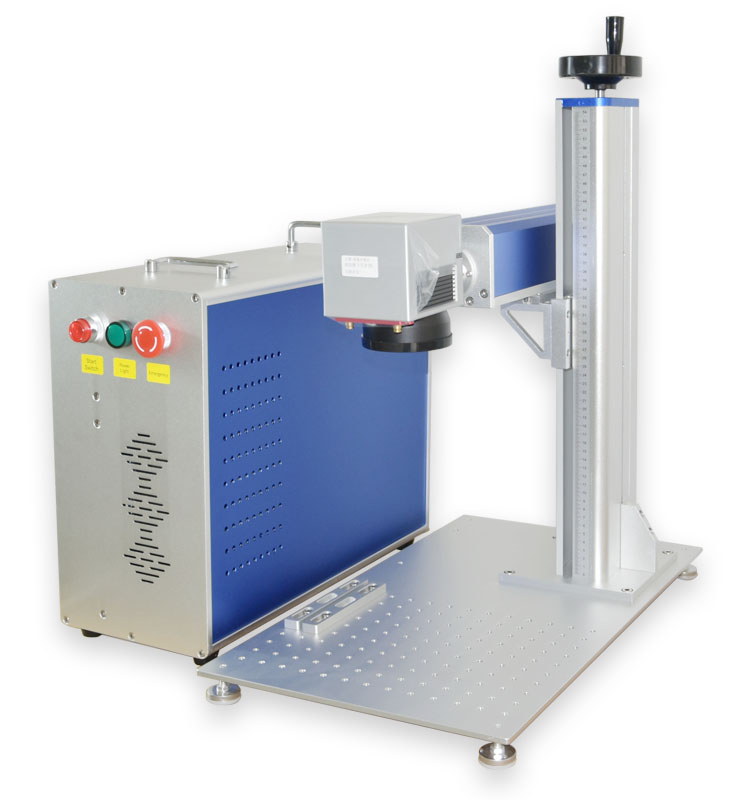

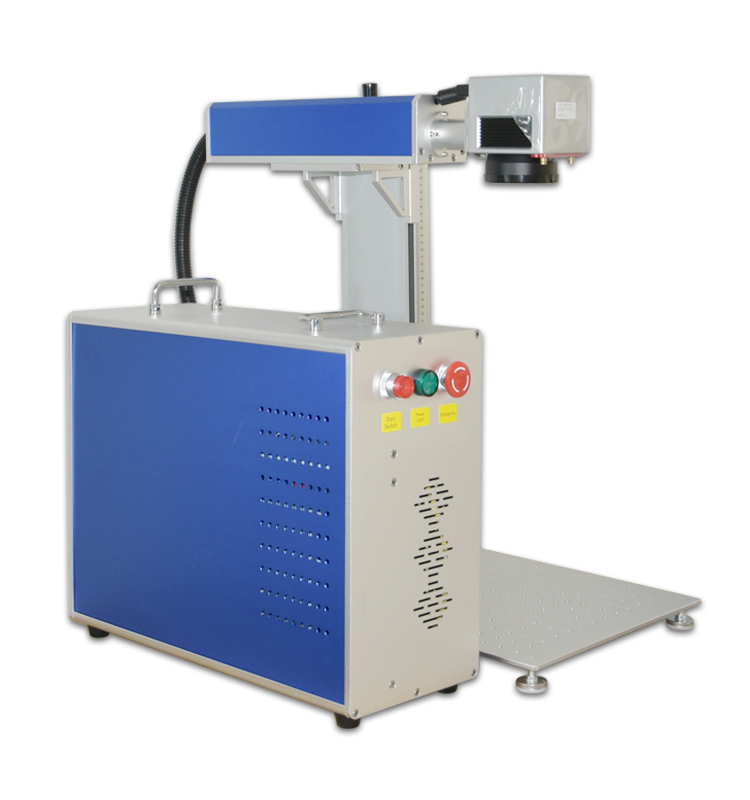

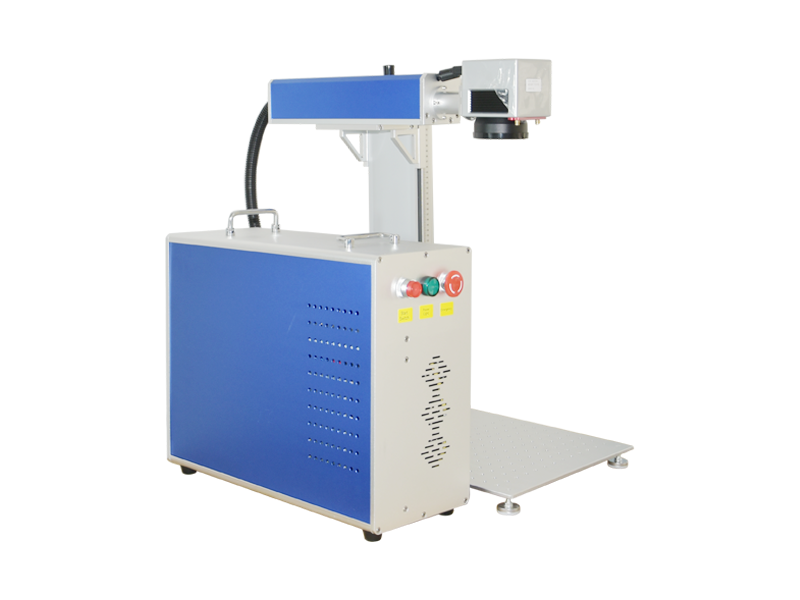

Split Raycus 20W 30W 50W 60W 70W 100W Fiber Laser Engraver


Product model:MH FP-200 300 500 600 700 100W

Product introductionMinghong MH FP portable series fiber laser marker is wildly applicable for all kinds of industries such as hardware, electronic, jewelry, leather, cosmetic, electronic, pharmacy, kitchenware, banking etc., it is suitable for different kinds of metal such as stainless steel, aluminum, iron, brass, gold, silver other more metal material, as well as suitable for plastic material such as ABS, PVC, PP, PE, etc., for engraving logo, series number, bar code , image, text, letters etc., other message. With the advantage of permanent marking, excellent marking effect and flexible function, this table top fiber series is considered as an ideal traceability system in all kind of industries.

Technical support:

Application field:Used in metal hard hardware , kitchen ware , electronic , jewerly , tumbler, lighting for engraving traceability messages

Product parameter
  1. Product name

  2. Model number

  3. Laser power

  4. Laser brand

  5. Power supply

  6. Laser wavelength

  7. Laser source lifespan

  8. Laser repeat frequency

  9. Marking field

  10. Min line width

  11. Galvo head linear marking speed

  12. Repeat precision

  13. Positioning method

  14. Controlling system

  15. Operating language

  16. Software

  17. Support Engraving file

  18. Cooling method

  19. Writing Languages

  20. Font type

  21. Printing message

  22. Machine power supply brand

  23. Suitable for material product

  24. After-sales installation

  25. Machine structure

  26. Machine net weight

  27. Machine package size

  1. Minghong Split Raycus 20W 30W 50W 60W 70W 100W Fiber Laser Engraver

  2. MH FP-200/300/500/600/700/100W

  3. 20W, 30W,50W, 60W, 70W, 100W

  4. Raycus

  5. 110V-250V, 50-60HZ, single phase

  6. 1064nm

  7. Technical hours lifespan:100000hours ,actual lifespan is subject to the actual using

  8. 20-80KHZ

  9. Standard size: 110*110mm, other size 175*175mm, 200*200mm,300*300mm is optional

  10. 0.01mm

  11. Depends on product materials and marking materials

  12. ±0.002

  13. Double red focus

  14. Windows system computer

  15. Chinese and English

  16. EZCAD

  17. Ai, plt, dxf, dst , svg, nc, bot

  18. Wind cooling

  19. Most languages writting , including Arabic

  20. True type font, mongline font, Dot matrix font

  21. Text, Date, batch, expiry, series number, 2d code(QR code)  barcode, logo, etc,

  22. Taiwan Meanwell power supply

  23. Different kinds of metal material product , and some plastic like PVC , PPR , HDPE. PC , ABS other plastic materials

  24. Provide online video assitance and parameter setting guide

  25. Aluminum

  26. 55KG

  27. 57KG , wood packing size: 79*68*33cm


Product details

Description

Minghong MH FP series fiber laser marking machines, small design,easy for carrying to anywhere you want to bring it to,it can be used at home , mall , shop, workshop, ; Fully aluminum structure body,  protects it from damage during shippment; Minghong manufacturer focus on manufacturing good quality  laser engravers, we do soldering on every connection port of the wires , to stabilize and prolong the machine lifespan, which is more durable than other cheaper price laser engravers; Minghong Fiber laser engravers work for all metal materials including stainless steel , steel , gold  , silver , aluminum, brass , iron.., Delivering good quality laser beam and producing fine engraving result , it makes outstanding permance in engraving for jewerly  , tumbler, animal rings,  artwork product, name plate, hardware spare parts, lighting bulbs, kitchen ware…. various products . Besides metal materials ,it shows  good effect in  engraving on plastic product like ABS , PVC , PP , PE ,some leathers, coated glass product , coated wood product. Minghong fiber laser engraver adopts original Beijing JCZ EZCAD as engraving system, which is also compatible with LIGHT BURN software; Wild functional and flexible, it supports engraving vector file, JPT image, real time, QR code , bar code , serial number, text,   date, numbers. By it's advantages of permanent marking traceability message,non need of consumables, low maintenance  Minghong fiber laser engravers are popular with users from hardware, electronic, jewelry, leather, cosmetic, electronic, pharmacy, kitchenware, banking etc. industries for engraving traceabilities


详情页的PNG 图.png


FEATURES

                                                 1. Small in Size, it can be  home use, in samll shop or workshop


                                                 2.High flexible , works for all metal products , some plastic materials like PVC, PE, ABS, some leather , coated wood..



                                                 3..Permanent marking, non- erased, effective anti-counterfeiting and traceability


                                                 4.High efficient, steady& reliable, low maintenancce


                                                 5.Applicable for various of industries such as hardware,    electronic, jewelry, cars, kitchenware, glass, tumbler, etc.


                      6.Wild functional, can be used for engraving logo, image, barcode, series number, text, letters, etc. message
