                • HOME-PRODUCT-Laser coding machine
                Basic informationparameterProduct detailsProduct specificationRecommended product

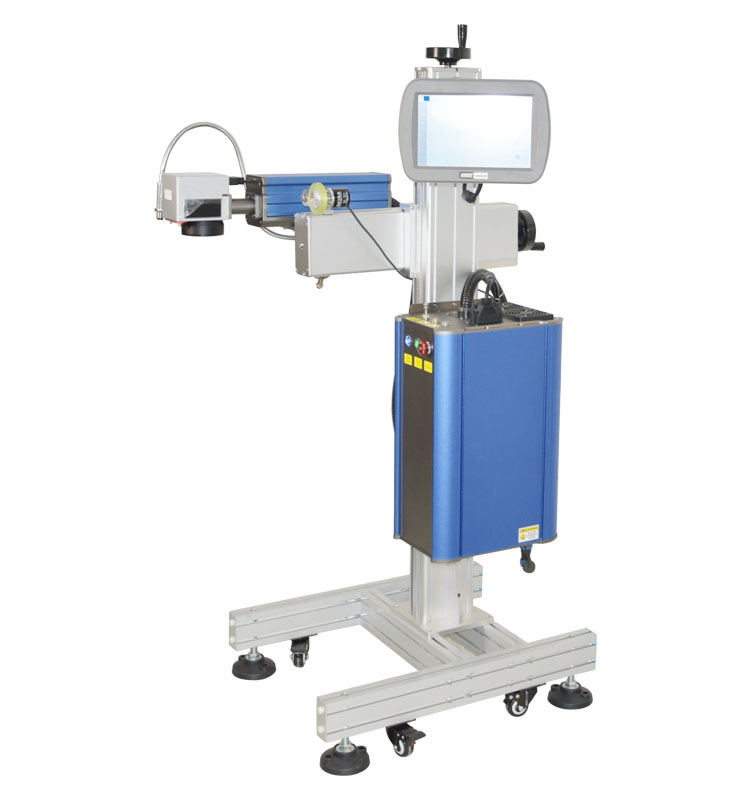

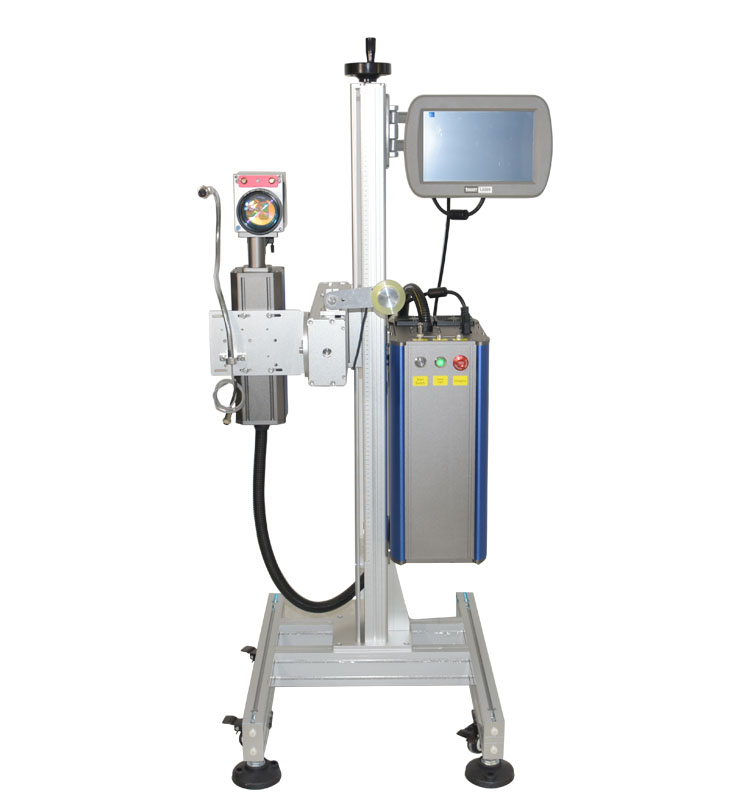

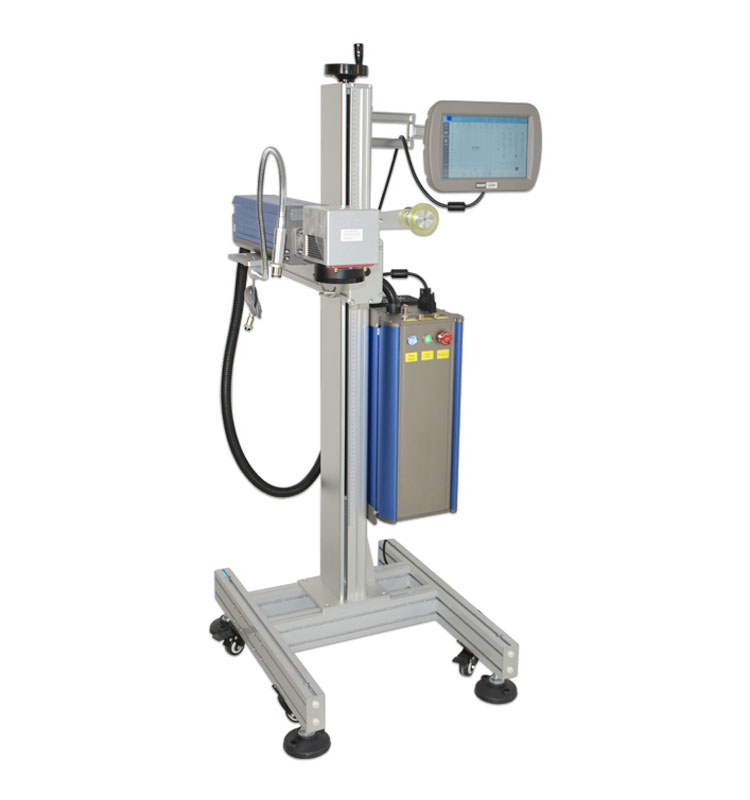

                Plastic Pipe Laser Printer


                Product model：MH FA-20/30/50/60/70/100

                Product introduction

                Technical support：

                Application field：Minghong fiber laser printer used in plastic pipe industry for plastic pipes traceability message printing , it can work for printing on HDPE/LDPE/PVC/PPR pipes printing

                Product parameter

                1. Product name

                2. Model number

                3. Laser power

                4. Laser brand

                5. Power supply

                6. Laser wavelength

                7. Laser source lifespan

                8. Laser repeat frequency

                9. Marking field

                10. Min line width

                11. Galvo head linear marking speed

                12. Repeat precision

                13. Positioning method

                14. Controlling system

                15. Operating language

                16. Cooling method

                17. Writing Languages

                18. Font type

                19. Printing message

                20. Machine power supply brand

                21. Suitable for material product

                22. Machine size

                23. Machine structure

                24. Machine net weight

                25. Machine package size

                1. Fly 20W 30W 50W 60W 70W 100W Fiber Laser Printer

                2. MH FA-20/30/50/60/70/100W

                3. 30W

                4. Raycus/MAX/JPT For option

                5. 110V-250V, 50-60HZ, single phase

                6. 1064nm

                7. Technical hours lifespan:100000hours ,actual lifespan is subject to the actual using

                8. 20-80KHZ

                9. Standard size: 110*110mm, other size 175*175mm, 200*200mm is optional

                10. 0.01mm

                11. 7000mm/s-12000mm/s for optional

                12. ±0.002

                13. Double red focus

                14. 10.2 inch monitor , one touch screen , easy for operation

                15. Chinese , English , Arabic , Vietnamese, Russia, Thai , Spanish , French , Turkish , Greece..

                16. Wind cooling

                17. English/Russia/Arabic/Thai/Spanish /Turkish/Vietnamese/Greece/French

                18. True type font, mongline font, Dot matrix font

                19. Text, Date, batch, expiry, series number, 2d code(QR code)  barcode, logo, etc,

                20. Taiwan Meanwell power supply

                21. Different kinds of metal material product , and some plastic like PVC , PPR , HDPE. PC , ABS other plastic materials

                22. 60*90*147cm

                23. Aluminum

                24. 55KG

                25. 138*64*39cm Gross weight : 82KG


                Product details
                Product specification
              • Download now
                  • Recommended product
